ORICO 35 Series Enterprise 5 bay 3.5'' HDD Docking Station USB3.0 to SATA With RAID HDD Enclosure 150W Internal Power HDD Case

US$ 253.12

Color

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: ORICO 35 Series Enterprise 5 bay 3.5'' HDD Docking Station USB3.0 to SATA With RAID HDD Enclosure 150W Internal Power HDD Case
- Item NO.: 2255800258640390
- Weight: 6 kg = 13.2277 lb = 211.6438 oz
- Category: Aliexpress
- Creation Time: 2023-09-15
Notice:This link is 5 bay USB3.0 hdd docking station with Raid function. If you need AU Plug, please leave a message after making a order, we will arrange for you soon

Features：

1.The 5 Bay usb 3.0 hard drive enclosure Support RAID 0/1/3/5/10/JBOD/ClONE/Normal Exclusive RAID Mode which can meets different work requirements.

There are 2 Methods to Set RAID Mode for your choice. (Manual Method or Software Manager Method)

2. Support 80TB (16TB x 5 ) Large Capacity Storage .Single disk supports 16TB enterprise-class hard drive ;It is more safer for large-capacity hard disks to remove and store. (support RAID function, Not NAS)

3. Super Speed Transfer Rate. Compatible with all 2.5inch and 3.5 inch SATA I, II, III HDD or SSD , Adapting USB3.0 to SATA III 5Gbps main control program with high-speed interface and supporting 5Gbps data transfer rate, to save your waiting time.

4. Made of aluminum alloy. Designed with honeycomb heat dissipation holes, The fan that exhausts air away from the internal drives.

7 RAID Modes for your choice

RAID 0: Merge all HDD's capacity in the HDD enclosure and upgrade it's performance (reading and writting speed)

RAID 1: Two HDD's in the HDD enclosure can backup each other, cannot upgrade it's performance(reading and writing speed), and it can support self restoration function (RAID 0 and SPAN modes cannot support this function), which makes files can be restored when mistaks and faults occur.

PS: RAID 1 can only support 2 HDDs

RAID 3 and RAID 5 require 3 or more hard drives, one of which will be used for backup data, and the remaining hard drives will be combined for your use.

RAID 3 or RAID 5 not only ensures data security, but also provides certain performance improvements, it's the most economical RAID solution and is suitable for most users

RAID 10 = RAID 0 + RAID 1

Big/JBOD: Merge all HDD's capacity in the HDD enclosure to make it easy to manage but can not upgrade it's performance

Normal : means normal state, all HDDs in the HDD enclosure work independently without forming any RAID modes

Note:

Please backup all files before setting or changing RAID mode

Please don't move HDD when it's in RAID mode.

Please in Normal mode before setting or changing RAID mode

More details please see in User Manual.

2 Methods to set RAID mode

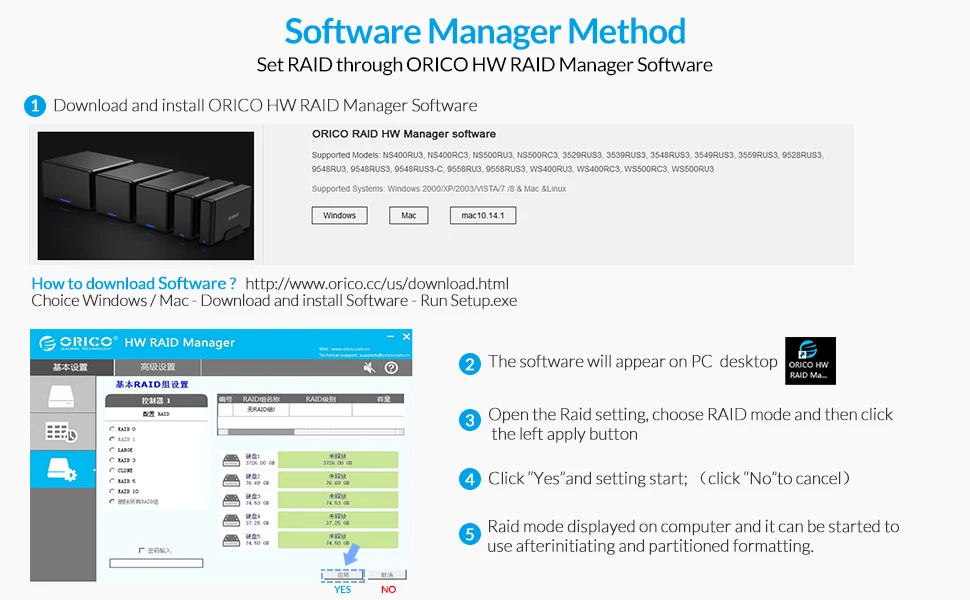

1.Software Manager Method

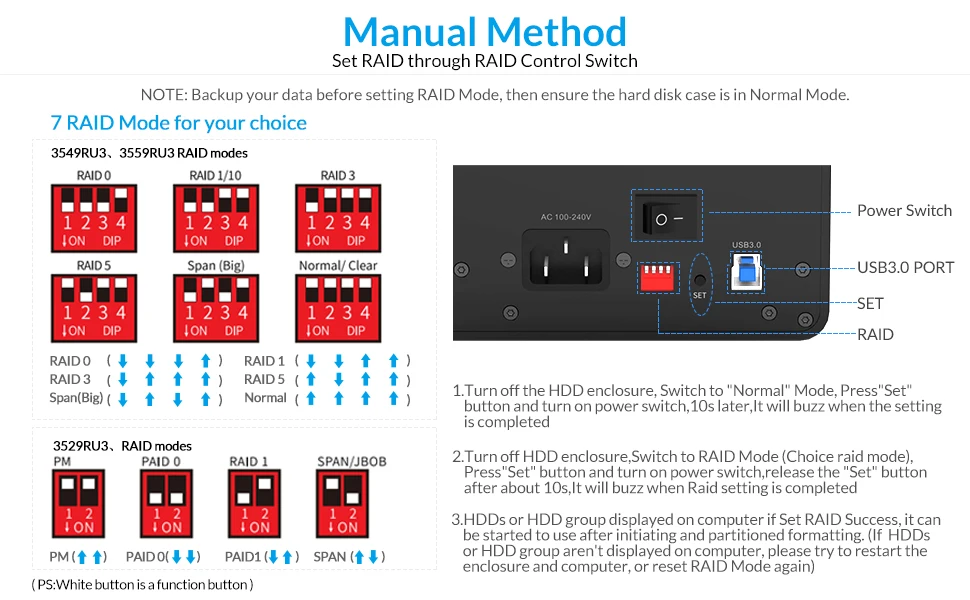

2.Manual Method

Superior protection

Screw fixation

Effcient heat dissipation

80*80mm high power silent fan with thermal converction ducts

80TB large capacity

Single disk supports 16TB enterprise-class hard drive ;It is more safer for large-capacity hard disks to remove and store. (support RAID function, Not NAS)

Superspeed performance

150W Internal power supply

Provide sufficient power to ensure the Data storage and Transferring's Safety and Stability.

Auto sleep

Enter sleep mode automatically after left unused for 10 minutes

Universal compatibility

Compatible with Windows, Mac and Linux

RAID

More details

1. Anti-skid Pad
2. LED Indicator
3. Wide Range

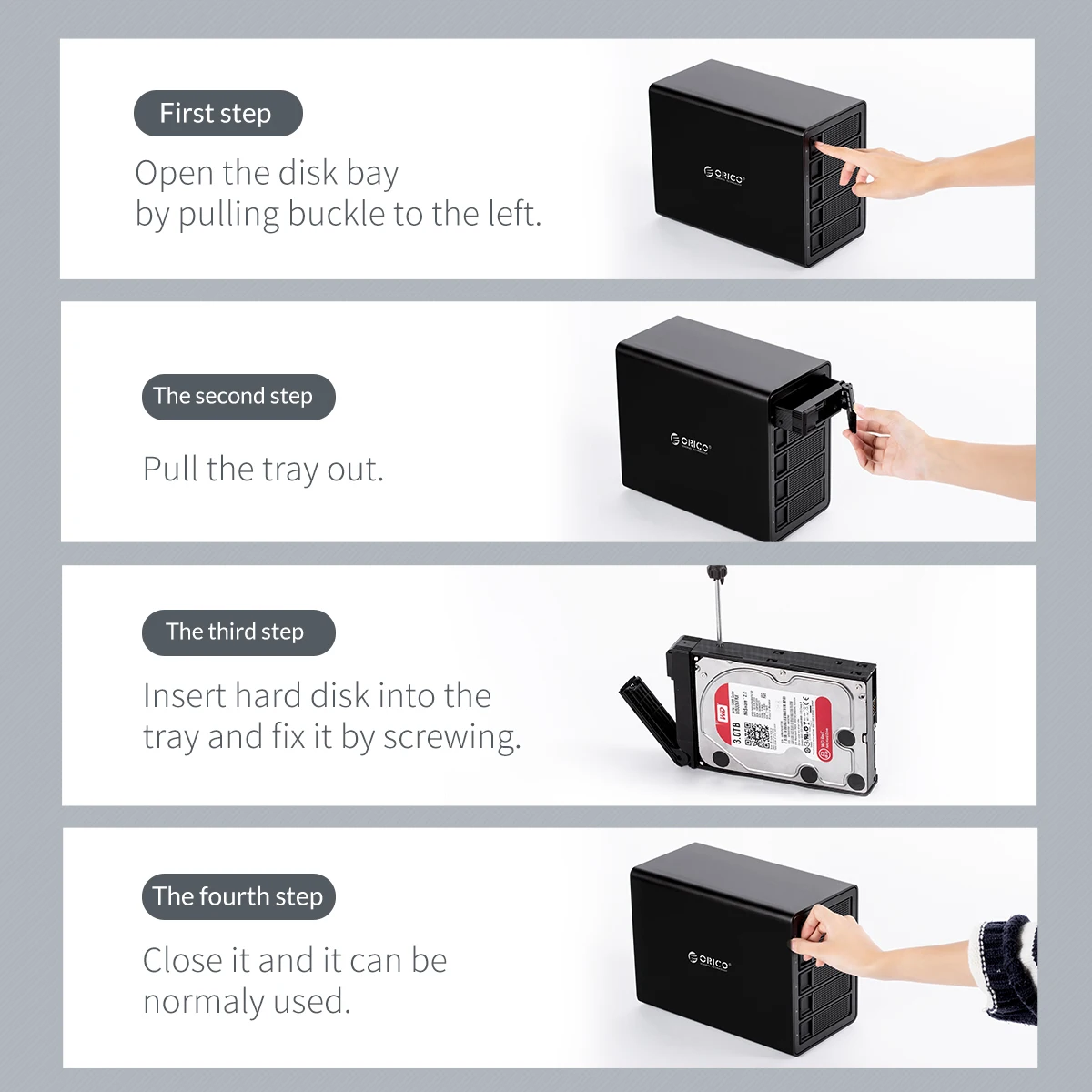

Using Steps

1. Open the disk bay by pulling buckle to the left
2. Pull the tray out
3. Insert hard disk into the tray and fix it by screwing
4.Close it and it can be mormally used

Package list

Description, Black and Silver
